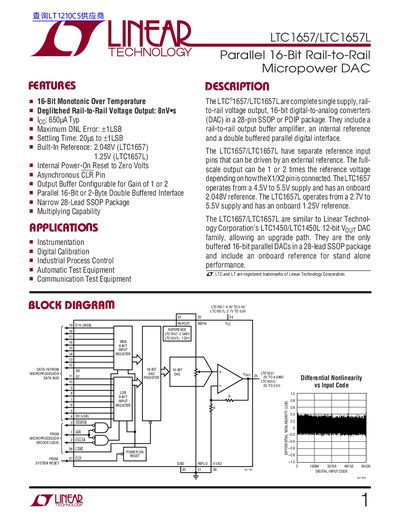

LINEAR LTC1657/LTC1657L handbook

Update: 28 September, 2023

The LTC1657/LTC1657L are complete single supply, rail-to-rail voltage output, 16-bit digital-to-analog converters (DAC) in a 28-pin SSOP or PDIP package. They include a rail-to-rail output buffer amplifier, an internal reference and a double buffered parallel digital interface. The LTC1657/LTC1657L have separate reference input pins that can be driven by an external reference. The full-scale output can be 1 or 2 times the reference voltage depending on how the X1/X2 pin is connected. The LTC1657 operates from a 4.5V to 5.5V supply and has an onboard 2.048V reference. The LTC1657L operates from a 2.7V to 5.5V supply and has an onboard 1.25V reference. The LTC1657/LTC1657L are similar to Linear Technology Corporation’s LTC1450/LTC1450L 12-bit VOUT DAC family, allowing an upgrade path. They are the only buffered 16-bit parallel DACs in a 28-lead SSOP package and include an onboard reference for stand alone performance.

Brand: LINEAR

File format: PDF

Size: 201 KB

MD5 Checksum: 2E4634FFDC2FBFFEFD439AF88C3C3D8C

Publication date: 06 June, 2012

Downloads: -

PDF Link: LINEAR LTC1657/LTC1657L handbook PDF
