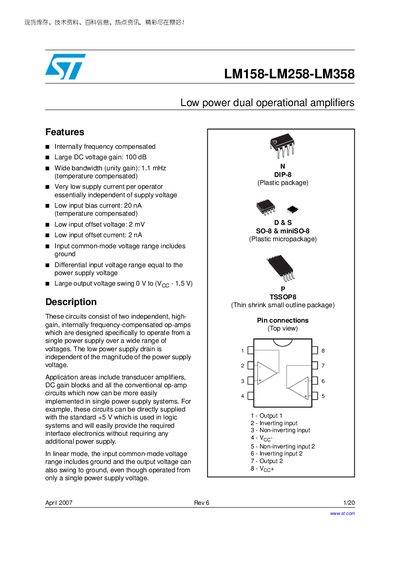

ST LM158-LM258-LM358 Low power dual operational amplifiers

Update: 30 September, 2023

The LM158-LM258-LM358 low power dual operational amplifiers have large DC voltage gain (100dB), wide bandwidth (unity gain: 1.1 mHz), very low supply current (essentially independent of supply voltage), low input bias current (20nA), low input offset voltage (2mV), low input offset current (2nA), input common-mode voltage range includes ground, differential input voltage range equals the power supply voltage, large output voltage swing (0V to (VCC - 1.5V)) and other features.

---

File format: PDF

Size: -

MD5 Checksum: 4ACFE5CB034BD07F145C9036ABB9F0E1

Publication date: 28 March, 2012

Downloads: -

PDF Link: ST LM158-LM258-LM358 Low power dual operational amplifiers PDF
