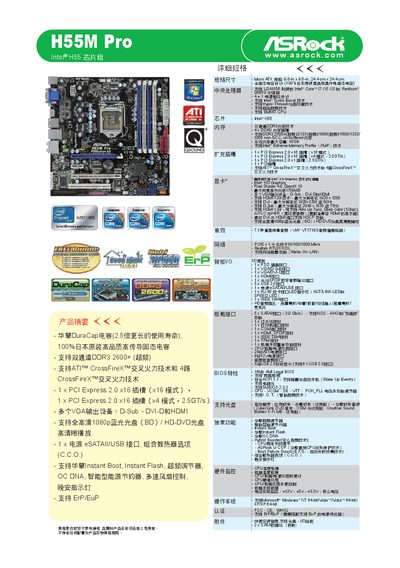

ASRock H55M Pro motherboard Manual

ASRock H55M-LE motherboard uses Intel H55 chipset, supporting LGA1156 interface for Intel Core i7, Core i5, Core i3 and Pentium G6950 processors. The motherboard uses all solid capacitor design, supports DDR3 2600+(overclocked)/2133(overclocked)/1866(overclocked)/1600/1333/ 1066 non-ECC, un-buffered memory, the maximum memory capacity is 16GB. Expansion interface, the motherboard equipped with 1 PCI Express 2.0 x16 slot (x16 mode), 1 PCI Express 2.0 x16 slot (x4 mode, 2.5GT/s), 1 PCI Express 2.0 x1 slot (2.5GT/s), 1 PCI slot, support ATITM CrossFireXTM CrossFire technology and 4-way CrossFireXTM CrossFire technology. Network, the motherboard equipped with PCIE x 1 10/100/1000 Mb/s Gigabit network card. Audio, the motherboard equipped with Realtek ALC887 HD audio chip. Other interfaces, the motherboard equipped with 1 infrared interface, 1 printer port interface, 1 COM port interface, 1 HDMI_SPDIF interface, 1 IEEE 1394 interface, 1 TPM interface, 1 chassis power indicator interface, CPU/chassis/power fan interface, 24-pin ATX power interface, 8-pin 12V power interface, front panel audio interface, 3 groups of USB 2.0 pin headers (support 6 USB 2.0 ports).


Brand: ASRock

File format: PDF

Size: 1746 KB

MD5 Checksum: 9C3167A8B0C5DBFE4233DB514F890F59

Publication date: 28 September, 2011
