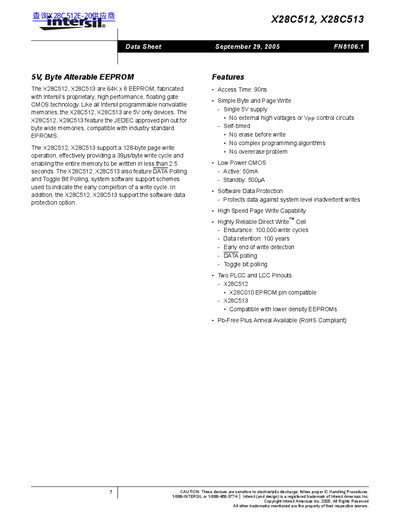

intersil X28C512 X28C513 handbook
Update: 30 September, 2023
The X28C512, X28C513 5V, Byte Alterable EEPROM are 64Kx8 EEPROMs fabricated with Intersil's proprietary, high performance, floating gate CMOS technology. They are 5V only devices and support a 128-byte page write operation, effectively providing a 39µs/byte write cycle and enabling the entire memory to be written in less than 2.5 seconds. They also feature DATA Polling and Toggle Bit Polling, system software support schemes used to indicate the early completion of a write cycle.
Brand: intersil
File format: PDF
Size: 593 KB
MD5 Checksum: F835FCA7AF733843F5CFC7358DFA7C0C
Publication date: 12 June, 2012
Downloads: -
PDF Link: intersil X28C512 X28C513 handbook PDF
