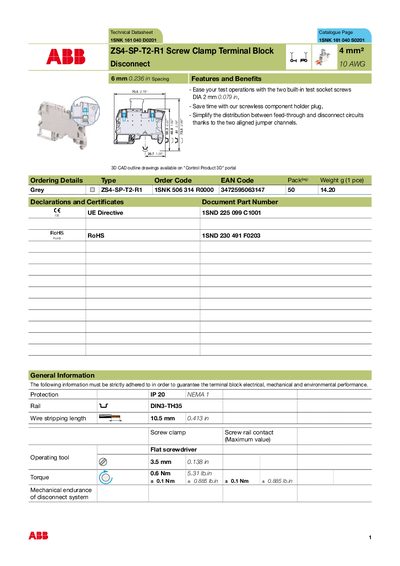

ABB ZS4-SP-T2-R1 Screw Clamp Terminal Block 4 mm Disconnect

Update: 30 September, 2023

ZS4-SP-T2-R1 is a screw-clamp terminal block from Schneider Electric. It has a maximum cross section of 4mm² and a disconnect current of 10AWG. The spacing is 6mm. Its features are two built-in test socket screws for easy testing operations, a screwless component holder plug for time saving, and two aligned jumper channels for simplified distribution between feed-through and disconnect circuits.

Brand: ABB

File format: PDF

Size: 500 KB

MD5 Checksum: D3FF6F0E0C4E53B34E1A04A4B25811F5

Publication date: 07 May, 2012

Downloads: -

PDF Link: ABB ZS4-SP-T2-R1 Screw Clamp Terminal Block 4 mm Disconnect PDF

Download
